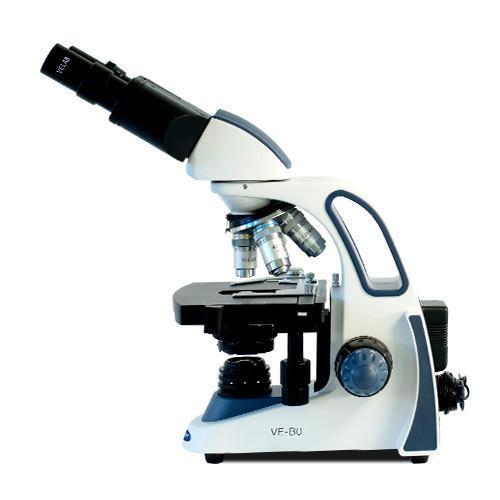

The ideal microscope for all kinds of basic and advanced techniques. The VE-B0 complies with the necessary characteristics for routine work in clinical laboratories.Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
Product Specifications:
| EYEPIECES: |
WF 10x/18 mm with diopter adjustment on one eyepiece. |
| HEAD: |
Binocular Siedentopf type, 45° inclined head, 360° rotatable. Interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95” |
| NOSEPIECE: |
Quadruple nosepiece with click-stops. |
| OBJECTIVES: |
4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
| STAND: |
Stative, robust and reinforced with epoxy paint finish |
| STAGE: |
Two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: |
Abbe, A.N. 1.25 with height adjustment screw. |
| DIAPHRAGM: |
Iris with filter holder. |
| FOCUSING: |
Coarse and fine anti-slip control knob with tension adjustment. |
| WEIGHT: |
14.73 lb / 6.68 kg. |
| DIMENSIONS: |
10.04” x 12.99” x 16.34” / 255 x 329 x 415 mm |
| ILLUMINATION: |
LED with intensity control. |
| POWER SUPPLY: |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accesories included:
- AC/DC Adapter.
- Adapter cable reel device.
- Blue filter.
- Dust cover.
- Immersion oil.
