The VE-403 is a professional inverted microscope, ideal for the observation of samples in large containers such as culture bottles, petri dishes or microplates. It includes accessories for phase contrast applications and different stage adapters for a wide range of sample containers. Excellent for observation of cell cultures without prior preparation, monitoring of activity and growth, as well as production and quality control of biological products (vaccines, drugs, serums, antisera and reagents).
.Product Specifications:
|
EYEPIECES:
|
WF 10x/20mm with rubber eyecups and diopter adjustment on one eyepiece.
|
|
HEAD:
|
Binocular Siedentopf type, 45° inclined with interpupillary distance adjustment between 48 - 75 mm / 1.88” - 2.95”.
|
|
NOSEPIECE:
|
Quintuple with anti-slip grip and click-stops.
|
|
OBJECTIVES:
|
4X, 10XPH, L20XPH (retractable) and L40X (retractable) oil immersion with plan achromatic optics, metallic finish and color ring for easy identification.
|
|
STAND:
|
Stative, robust and reinforced with epoxy paint finish.
|
|

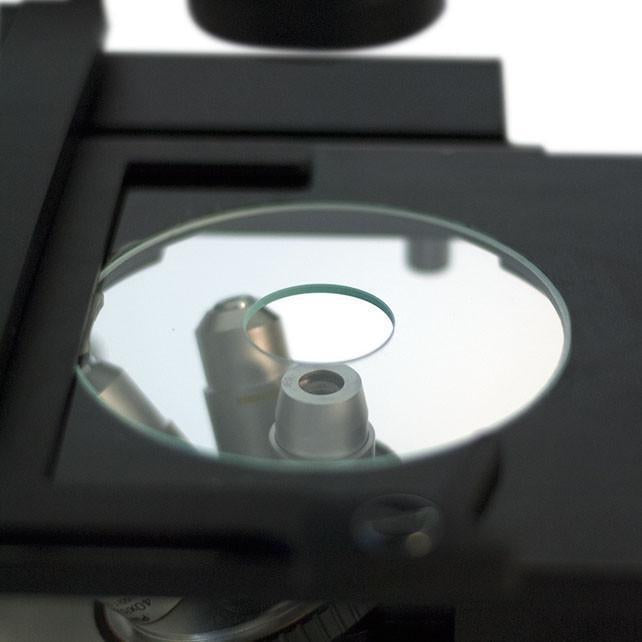

STAGE:
|
Mechanical with X-Y coaxial movement, 242 x 172 mm / 9.52” x 6.77” and clamp.
|
|
CONDENSER:
|
Abbe, 0.3 A.N. with 75mm / 2.95” distance.
|
|
DIAPHRAGM:
|
Iris with filter holder.
|
|
FOCUSING:
|
Coarse and fine anti-slip control knob with tension adjustment.
|
|
ILLUMINATION
|
Epi-halogen 12V/30W with variable intensity control.
|
|
POWER:
|
110-240V, 50/60 Hz AC adapter.
|
|
DIMENSIONS:
|
12.59″ x 19.29″ x 20.47″
|
Accessories included:
- Eyepiece centering telescope.
- Metal stage adapter.
- 10X/20X lamella for phase contrast.
- Blue, green, opaque white and yellow filters.
- Holder for slides, Petri dishes (37, 54 and 64 mm) and Terasaki plate.
- Power cord.
- Crystal stage adapter.
- Dust cover.
**10-years limited warranty
