The ideal microscope for all kinds of basic and advanced techniques. The VE-B1 complies with the necessary characteristics for routine work in clinical laboratories. Ideal for observing samples in areas such as histology, biomedicine and biotechnology.
Product Specifications:
EYEPIECES: |
WF 10x/18 mm with diopter adjustment on one eyepiece. |
HEAD: |
Binocular Siedentopf type, 45° inclined head and 360° rotation, with interpupillary distance adjustment between 55 - 75mm / 2.16” - 2.95”. |
NOSEPIECE: |
Quadruple nosepiece with anti-slip grip and click-stops. |
OBJECTIVES: |

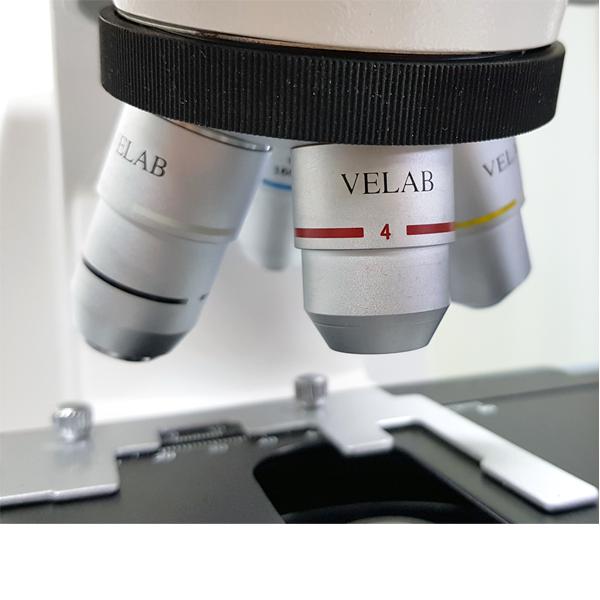

4X, 10X, 40X (retractable) and 100X (retractable) oil immersion with achromatic optics, anti-slip grip and color ring for easy identification. |
STAND: |
Stative, robust and reinforced with epoxy paint finish. |
STAGE: |
Two-Layer stage, with X-Y coaxial movement, 6.29 x 5.51, vernier, millimeter scale, clamp and height adjustment with stop. |
CONDENSER: |
Abbe, A.N. 1.25 with height adjustment. |
DIAPHRAGM: |
Iris with filter holder. |
FOCUSING: |
Coarse and fine anti-slip control knob with tension adjustment. |
ILLUMINATION: |
LED with variable intensity control. |
WEIGHT: |
5.95 lb / 6.68 kg. |
DIMENSIONS: |
9.06” x 14057” x 18.5” / 230 x 350 x 469 mm |
POWER SUPPLY: |
110-240V, 50/60 Hz AC adapter. |
Accessories included:
- Blue filter.
- Dust cover.
- Immersion oil.
