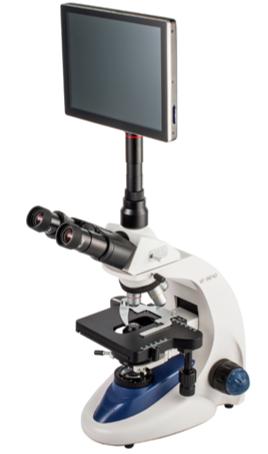

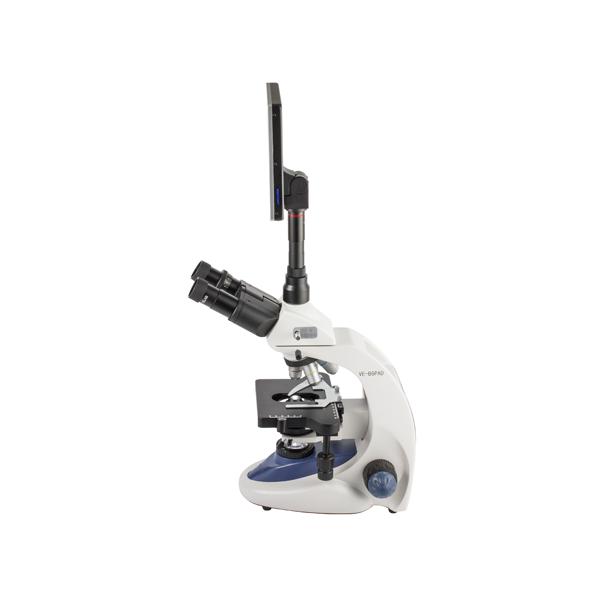

The VE-B6PAD is a professional microscope, ideal for research, higher education and routine work in clinical laboratories. Equipped with our SCOPEPAD device, which consists of a 5.0MP digital camera integrated into a completely removable 9.7” tablet with the Android operating system. The VE-B6PAD includes the IMS Camera application which allows to edit and measure captures, as well as IAS Camera for particle counting. It offers an innovative digital solution and can also be configured optionally to be compatible with a phase contrast kit and polarization set.
Product Specifications:
| EYEPIECE |
WF 10X/20mm with rubber eyecups and diopter adjustment on one eyepiece.
|
| HEAD |
HEAD
Binocular Siedentopf type, 45° inclined and 360° rotatable, with interpupillary
distance adjustment between 48 – 75 mm / 1.88” - 2.95”.
|
| NOSEPIECE |
Quadruple nosepiece with anti-slip grip and click-stops.
|
| OBJECTIVES |
4X, 10X, 40X (S) and 100X (S) (oil), achromatic optics, metallic finish and color ring for easy identification.
|
| STAND |
Stative, robust and reinforced with epoxy paint finish.
|
| STAGE |
Two-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop.
|
| CONDENSER |
Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included).
|
| DIAPHRAGM |
Iris with filter holder. |
| FOCUSING |
Coarse and fine anti-slip control knob with tension adjustment.
|
| ILLUMINATION |
Kohler LED with intensity control and field diaphragm in the lamp.
|
| WEIGHT |
24.65 lb / 11.18 kg.
|
| DIMENSIONS |
12.01” x 14.96” x 20.08” / 305 x 379 x 510 mm.
|
| POWER SUPPLY |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Tablet Specifications:
PROCESSOR
|
CPU RK3066 dual core 1.5 Hz.
|
| SCREEN |
9.7” touch screen with 1024 x 768p of resolution.
|
| STORAGE |
2GB DDR RAM and 32GB of maximum external support.
|
| INTERFACE |
USB, mini USB and HDMI.
|
| OPERATING SYSTEM |
Android 4.2.
|
| CONECTIVITY |
WIFI and Bluetooth.
|
| APPLICATION |
- IMS Camera: Edition and measurement.
- IMS Camera: Particle counting.
|
POWER SUPPLY
|
110-240V, 50/60 Hz AC adapter. |
Camera Specifications:
| TOTAL PIXELS |
5.0MP |
| IMAGE SENSOR |
1/2.5” CMOS. |
| RESOLUTION |
2592 x 1944p.
|
| WHITE BALANCE |
Automatic/Manual.
|
| RECORDING SYSTEM |
Image and Video. |
Accessories included:
- Power cord.
- Dust cover.
- Adapter AC/DC.
- Operation manual.
- Blue, green and yellow filters.
- Immersion oil.
- SD memory card.
- Adapter rings Φ 30 and Φ 30.5 mm.
- 0.5X C-Mount.
Accessories not included:
- Phase contrast kit.
- Polarization set.
