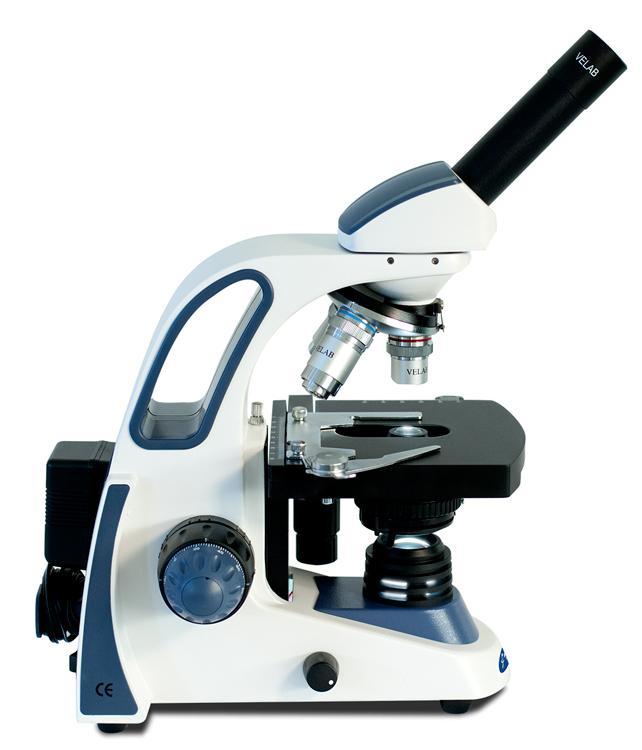

The VE-M4 is the ideal microscope for education and laboratories settings. Its mechanical stage facilitates sample observations and the LED lighting prevents the device from heating up. The VE-M4 includes a rear cable-winding reel for the power adapter. Recommended for educational use that does not require comprehensive observations such as viewing the basic elements of a cell, samples of plant tissues, protozoa, filamentous fungi, sperm, etc.
Product Specifications:
| EYEPIECE |
WF 10X/18 mm with block screw. |
| HEAD |
Monocular head, 45° inclined, 360° rotatable. |
| NOSEPIECE |
Triple nosepiece with click-stops. |
| OBJECTIVES |
4X, 10X and 40X (S), achromatic optics, metallic finish, anti-slip grip and color ring for easy identification. |
| STAND |
Stative, robust and reinforced with epoxy paint finish.. |
| STAGE |
Two-layer stage, with X-Y coaxial movement, 5.11” x 5.11”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER |
Abbe, N.A. 1.25 with height adjustment screw. |
| DIAPHRAGM |
Iris type with filter holder. |
| FOCUSING |
Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION |
LED with intensity control |
| WEIGHT |
12.32 lb / 5.58kg |
| DIMENSIONS |
10.04” x 12.99” x 12.99” / 255 x 329 x 329 mm |
| POWER SUPPLY |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accesories included:
