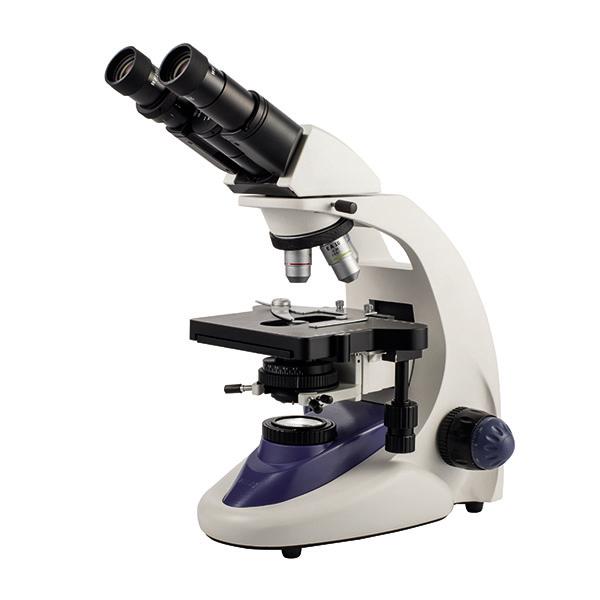

The VE-B4 is a professional microscope, ideal for research, higher education and routine work in clinical laboratories Its semi-plan objectives offer correction of optical aberrations for the observation of higher quality images. The Kohler LED lighting makes it a very complete and versatile device. The VE-B4 is adaptable to the needs of the user, it can be configured optionally to be compatible with a phase contrast kit and polarization set.
Product Specifications:
| EYEPIECES: |
WF 10X/20mm with rubber eyecups diopter adjustment on one eyepiece |
| HEAD: |
Binocular Siedentopf type, 45° inclined and 360° rotation, with interpupillary distance adjustment between 48 - 75mm / 1.88” - 2.95”. |
| NOSEPIECE: |
Quadruple nosepiece with anti-slip grip and click-stops. |
| OBJECTIVES: |
4X, 10X, 40X (S) and 100X (S) (oil), semi-plan achromatic optics, metallic finish and color ring for easy identification. |
| STAND: |
Stative, robust and reinforced with epoxy paint finish. |
| STAGE: |
Two-Layer stage with X-Y coaxial movement, 5.90” x 5.19”, vernier, millimeter scale, clamp and height adjustment with stop. |
| CONDENSER: |
Abbe, N.A. 1.25 with height adjustment screw. Equipped with adapter for phase contrast kit and polarization set (not included). |
| DIAPHRAGM: |
Iris with filter holder. |
| FOCUSING: |
Coarse and fine anti-slip control knob with tension adjustment. |
| ILLUMINATION: |
Kohler LED with variable intensity control and field diaphragm in the lamp. |
| WEIGHT: |
24.11 lb / 10.93 kg. |
| DIMENSIONS: |
12.01” x 14.96” x 20.08” / 305 x 379 x 510 mm |
| POWER SUPPLY: |
Three 1.2V AA rechargeable batteries (included) for 4 hours of continuous operation. 110-240V, 50/60 Hz AC adapter. |
Accessories included:
- Blue, green and yellow filters.
- Dust cover.
- Immersion oil.
- Operation manual.
- Power cord.
Accessories NOT included:
- Phase contrast kit.
- Polarization set.
